In today’s competitive manufacturing landscape, achieving precise, efficient, and repeatable tube end forming is critical for industries ranging from automotive and electric vehicles to HVAC and aerospace. Many manufacturers face common pain points: inconsistent part quality, high energy consumption, slow production cycles, and excessive reliance on manual labor.
Whether you need a tube end forming machine, pipe end forming machine, or a complete automated solution, choosing between hydraulic, servo, and CNC systems can directly impact your productivity and bottom line. As a leading tube end forming machine manufacturer in China with over 20 years of experience, GSIE specializes in high-tech end forming machines that combine superior precision with full automation. This guide will help you understand the differences and select the right tube forming machine for your needs.
What is Tube End Forming Process?
Tube end forming process refers to the plastic deformation of metal tube ends through specialized dies to create shapes such as expansion, reduction, flaring, beading, grooving, or threading. This metal tube end forming technology ensures tubes meet strict dimensional and sealing requirements in complex assemblies.
The core principle involves applying controlled force to the tube end while supporting the material to prevent collapse or cracking. Hydraulic systems use fluid pressure, servo systems rely on high-precision electric motors with real-time feedback, and CNC systems integrate multi-axis numerical control for programmable repeatability. Modern automatic tube end forming machine solutions often combine these technologies for optimal results.
Hydraulic vs Servo vs CNC Tube End Forming Machines: A Detailed Comparison
Hydraulic Pipe End Forming Machines
Traditional hydraulic pipe forming machine models deliver high force at relatively low cost, making them suitable for simple, high-volume jobs. However, they often suffer from lower precision (±0.5mm or more), higher energy use, and slower cycle times due to fluid dynamics and heat generation.
Servo Tube Forming Machines
Servo tube forming machine technology represents a significant advancement. Using servo motors for precise position and force control, these machines achieve excellent repeatability (±0.1mm), lower energy consumption (up to 50% savings), and faster response. GSIE’s（内链：https://www.China-gsie.com/） servo-driven tube end forming machines excel in complex, multi-step forming with minimal operator intervention.
CNC Tube End Forming Machines
CNC end forming machines add full programming flexibility and multi-station capability. They are ideal for intricate geometries and frequent product changeovers. Multistation automatic CNC pipe end forming machine models allow simultaneous operations, dramatically boosting throughput.
Side-by-Side Comparison Table
|
Feature |
Hydraulic |
Servo |
CNC |
|
Precision |
Medium (±0.5mm) |
High (±0.1mm) |
Very High (programmable) |
|
Energy Efficiency |
Low |
Excellent |
High |
|
Automation Level |
Basic |
High |
Very High (multi-station) |
|
Ideal For |
Simple high-force jobs |
Precision & repeatability |
Complex, flexible production |
|
Long-term Cost |
Higher energy & maintenance |
Best overall |
High initial, fast ROI |
Applications and Real-World Case Studies
Automotive and EV Tube Forming Applications
In automotive and new energy vehicle production, tube end forming and metal tube end forming are essential for fuel lines, brake tubes, and liquid cooling systems. High precision and repeatability directly affect safety and efficiency.
HVAC Tube End Forming Machine for Copper Pipes
The HVAC tube end forming machine for copper pipes is widely used in air conditioning and refrigeration. GSIE’s solutions ensure clean, accurate expansion and flaring that meet strict leakage requirements.
Other Industries: Aerospace, Medical, Shipbuilding & More
Our pipe end forming machine and tube forming machine technologies also serve aerospace equipment, medical devices, shipbuilding, furniture, and sports equipment, where complex geometries and material integrity are non-negotiable.
Success Stories from GSIE Customers
Over the years, GSIE has helped numerous clients upgrade their tube processing capabilities. Many new energy vehicle manufacturers have adopted our high stability tube end forming production line to meet the growing demand for precision cooling and piping systems. Similarly, leading HVAC companies have implemented GSIE automatic tube end forming machine solutions for copper pipe production, achieving improved forming consistency and production stability.
How to Choose the Right End Forming Machine? – Selection Guide
Key Factors to Consider When Buying Tube End Forming Machine
Evaluate production volume, required precision (±0.1mm or better), material types, and future automation needs. Energy consumption and maintenance costs should also be factored in for long-term ROI.
When to Choose Hydraulic, Servo, or CNC Systems
- Choose hydraulic for simple, high-force, low-precision tasks.
- Select servo tube forming machine for precision, energy savings, and stability.
- Opt for CNC multistation automatic CNC pipe end forming machine when flexibility and complex multi-step forming are required.
Benefits of High Stability Tube End Forming Production Line
GSIE’s fully automated lines deliver consistent quality, reduced labor dependency, and seamless integration with robotic systems — key advantages for modern smart manufacturing.
GSIE Advanced Tube End Forming Solutions

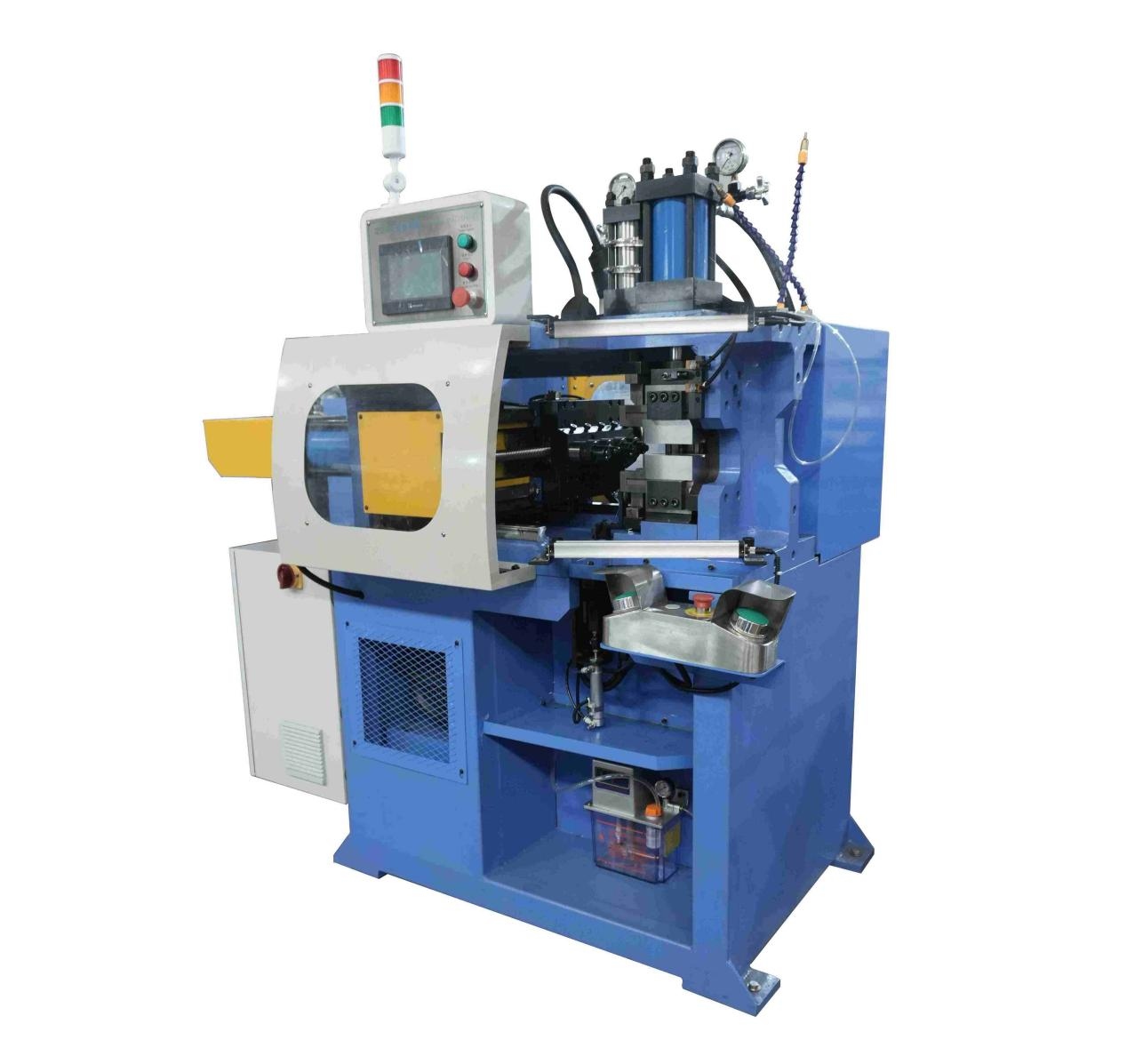

Tube end forming machineFMD-D30-5P
As an experienced tube forming machine supplier China and China pipe end forming machine supplier, GSIE integrates R&D, production, sales, and technical service as a high-tech enterprise with 20 years of expertise. Our equipment features high technical thresholds and superior automation.

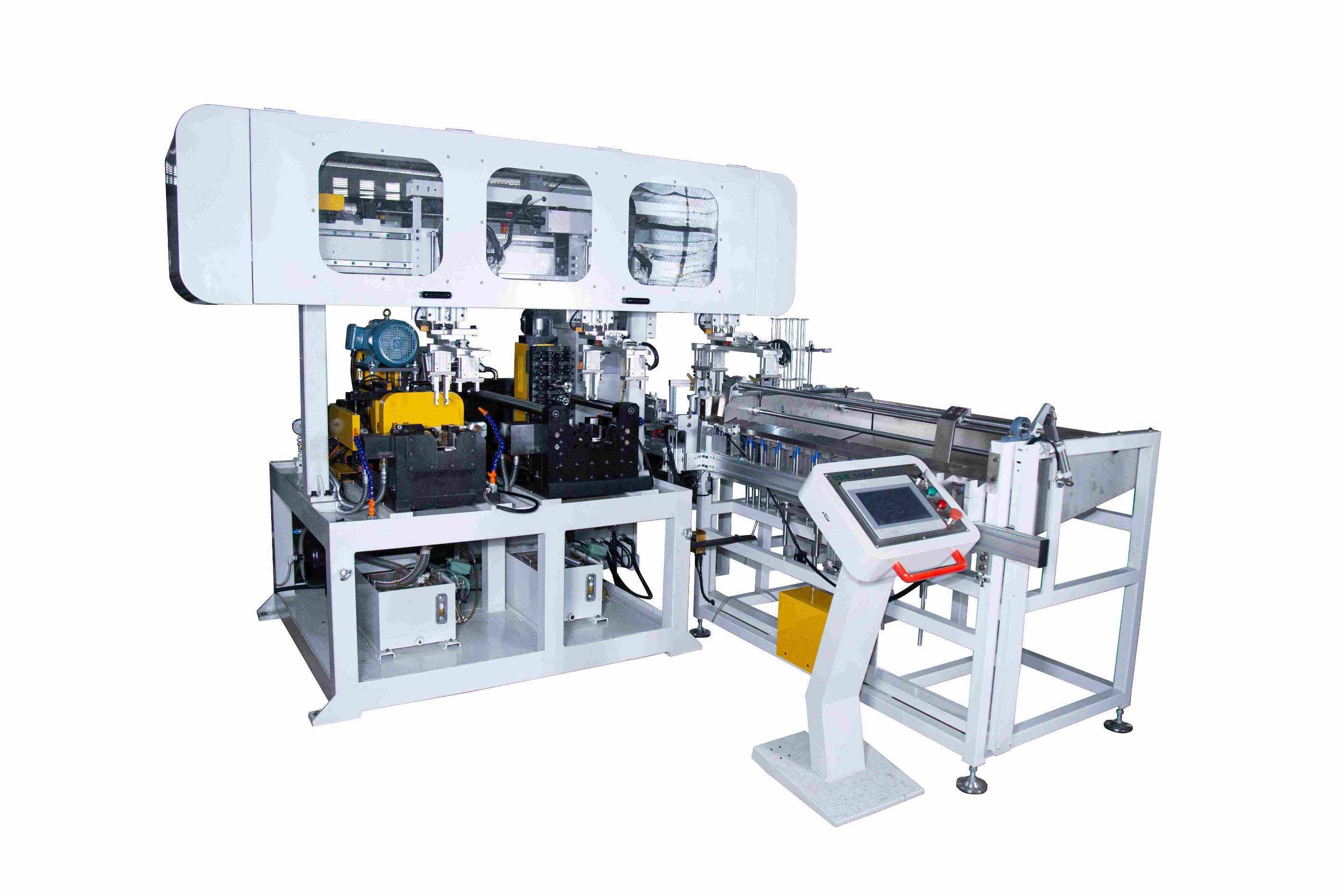

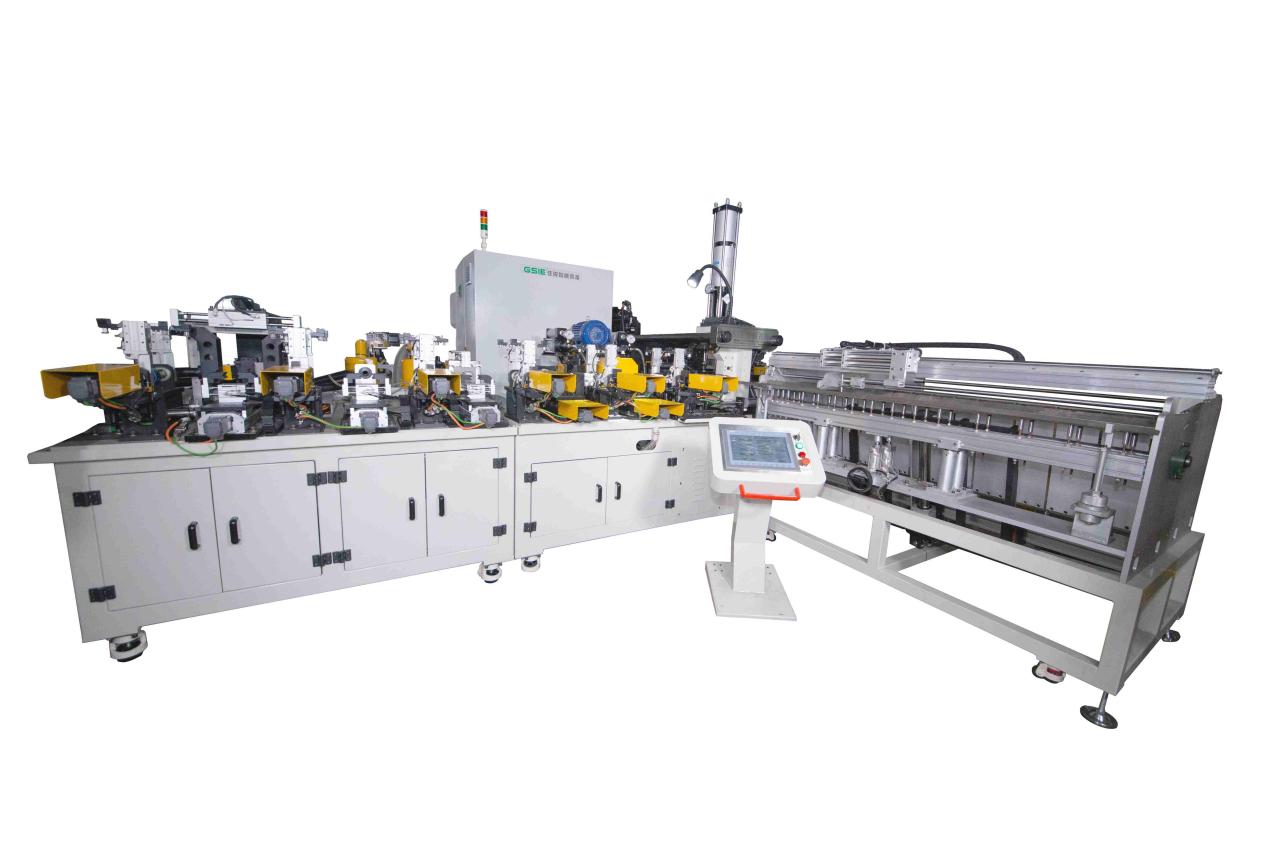

- ZFMS-D20 Automatic Servo Tube End Forming Machine: Ideal for small-to-medium diameter high-precision work.

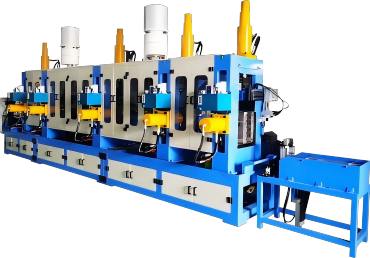

- FM1J Series Multistation Automatic CNC Pipe End Forming Machine: Perfect for complex, high-mix production.
- FMD-D30 Heavy-Duty Servo-Hydraulic End Forming Machine: Combines power with servo accuracy for larger tubes.
We support China tube end forming machine wholesale, OEM/ODM, and complete robotic automated flexible production lines.
FAQs:
Q1: What is the difference between hydraulic and servo tube end forming machines?
A: Servo models offer much higher precision, better energy efficiency, and superior repeatability.
Q2: Are CNC tube end forming machines difficult to operate?
A: With user-friendly interfaces and GSIE support, they are accessible for moderate-experience operators.
Q3: Which machine is best for HVAC copper pipe forming?
A: Our servo and CNC HVAC tube end forming machine for copper pipes deliver the best results.
Q4: Does GSIE offer China tube end forming machine wholesale and customization?
A: Yes, as a reliable China pipe end forming machine wholesale partner.
Q5: How does GSIE ensure high stability and automation?
A: Through advanced servo control, rigorous testing, and robotic integration.
